Wednesday 21 December 2011

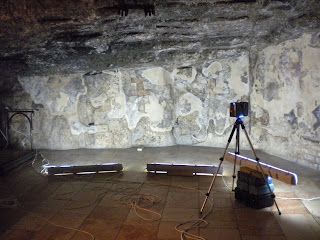

The survey of the Holy Sepulcher

A wonderful experience
Last Saturday evening 17th of December has been really extraordinary for us, since we started the first part of the survey of the Chapel of the Invention of the Holy Cross, inside the Holy Sepulcher.


We would have never believed to reach this place during our thesis!

However, the speed of the TLS Faro Focus 3D has allowed us to acquire many data in few time at a very, very high resolution, so now we are definitely sure to be able to partially survey also this extraordinary place!

The only inconvenient will be then the huge amount of data to manage in our thesis!

Concerning the data processing step, we have already processed many data on site by means of JRC 3D Reconstructor software, so we feel confident in a fast work of the next processing job at our return.


Now we have to go: a fantastic Israeli breakfast is waiting for us!We hope to be back to you very soon!


Un'esperienza straordinaria

Il 17 dicembre abbiamo trascorso un sabato sera alternativo: dalle 18.30 alle 22.45 effettuando i primi rilievi della Cappella dell'Invenzione della Santa Croce, all'interno della Basilica del Santo Sepolcro.

Non credevamo che il nostro studio ci avrebbe portato fino a qui!


Invece, grazie alla velocità del laser scanner Faro Focus 3D, che ci ha permesso di raccogliere molti dati in breve tempo ad un'altissima risoluzione, riusciremo a rilevare anche parte di questo straordinario posto.

L'unico inconveniente saràla grande mole di dati da inserire nella nostra tesi!

Confidiamo nella successiva fase di elaborazione: il software JRC 3D Reconstructor ci ha permesso di elaborare già molta parte dei dati direttamente in sito, il resto lo completeremo al nostro ritorno.

Torneremo da voi il prima possibile, ma non prima di aver assoporato la magnifica colazione israeliana che ci attende!

Friday 16 December 2011

Our journey from Tiberias to Jerusalem



And now we'd like to share with you some pictures taken during our trip from Tiberias to Jerusalem...


Façade of the Basilica of the Agony - Facciata della Basilica dell'Agonia


Inside the Basilica of the Agony - All'interno della Basilica dell'Agonia


Travel memoirs - Memorie di viaggio



The Garden of Gethsemane - L'Orto dei Getsemani


A huge olive! - Un super ulivo!


A very particular market - Un mercato molto particolare


The Wailing Wall - Il Muro del Pianto

Thursday 15 December 2011

REPORT from HOLY LAND_CAFARNAUM

DAY 24
DATE: 14_12_2011


Object: 3D survey of archaeological site
After more than three weeks, we have finally finished to acquire the 3D laser scanner data of Cafarnaum site, for a total of 289 scans!
Yesterday, during the post-processing elaboration, we have realized that there were some gaps between some scans and so we have acquired new data to fill these gap. We hope everything now works properly!!!
Today, early in the afternoon, we will leave our accommodation "Casa Nova Tiberias" where, thanks to the kind availability and hospitality of Andrey and his entire staff, for the last 20 days we have felt like home.
We would like to thank especially the custodians of the archaeological site, Father Jeromme and Father Vincent who, from the beginning, have welcomed us with them making our presence a really happy event .
We would like also to say Good luck to our super transport, a VW Caravelle 1990 petrol, obviously full-optional, that will have to spend a very hard trip in hostile territories.
Once left Tiberias, we will not know if we will still have an Internet connection and so, please, waiting anxiously for our next news.
We will come back to you as soon as we can!



Obiettivo: rilievo 3D sito archeologico
Dopo più di tre settimane abbiamo terminato le acquisizioni nel sito di Cafarnaum, in totale sono state effettuate 289 scansioni.
Nella giornata di ieri abbiamo integrato delle scansioni poiché in fase di post-elaborazione ci eravamo accorti di alcune lacune.
Speriamo vadano bene!!!
Nel primo pomeriggio di oggi lasceremo il nostro alloggio “Casa Nova Tiberias” dove, grazie alla gentilezza ed accoglienza di Andrey e tutto il suo staff, per 20 giorni ci siamo sentiti come a casa.
Un plauso lo meritano i custodi del sito archeologico, padre Jeromme e padre Vicent che sin da subito ci hanno accolto alla loro mensa facendo della nostra presenza un lieto avvenimento.
Un grosso in bocca al lupo al nostro mezzo di trasporto un VW Caravelle del 1990 a benzina, ovviamente full optional che dovrà affrontare un impegnativo viaggio di circa 200 km in territori ostili.
Una volta lasciata Tiberiade non sapremo se avremo ancora la disponibilità di una connessione e dunque rimanete in trepida attesa fino alle nostre prossime notizie.

Sunday 11 December 2011

REPORT from HOLY LAND_CAFARNAUM
DAY 20
DATE: 10_12_2011

Object: survey 3D archeological site

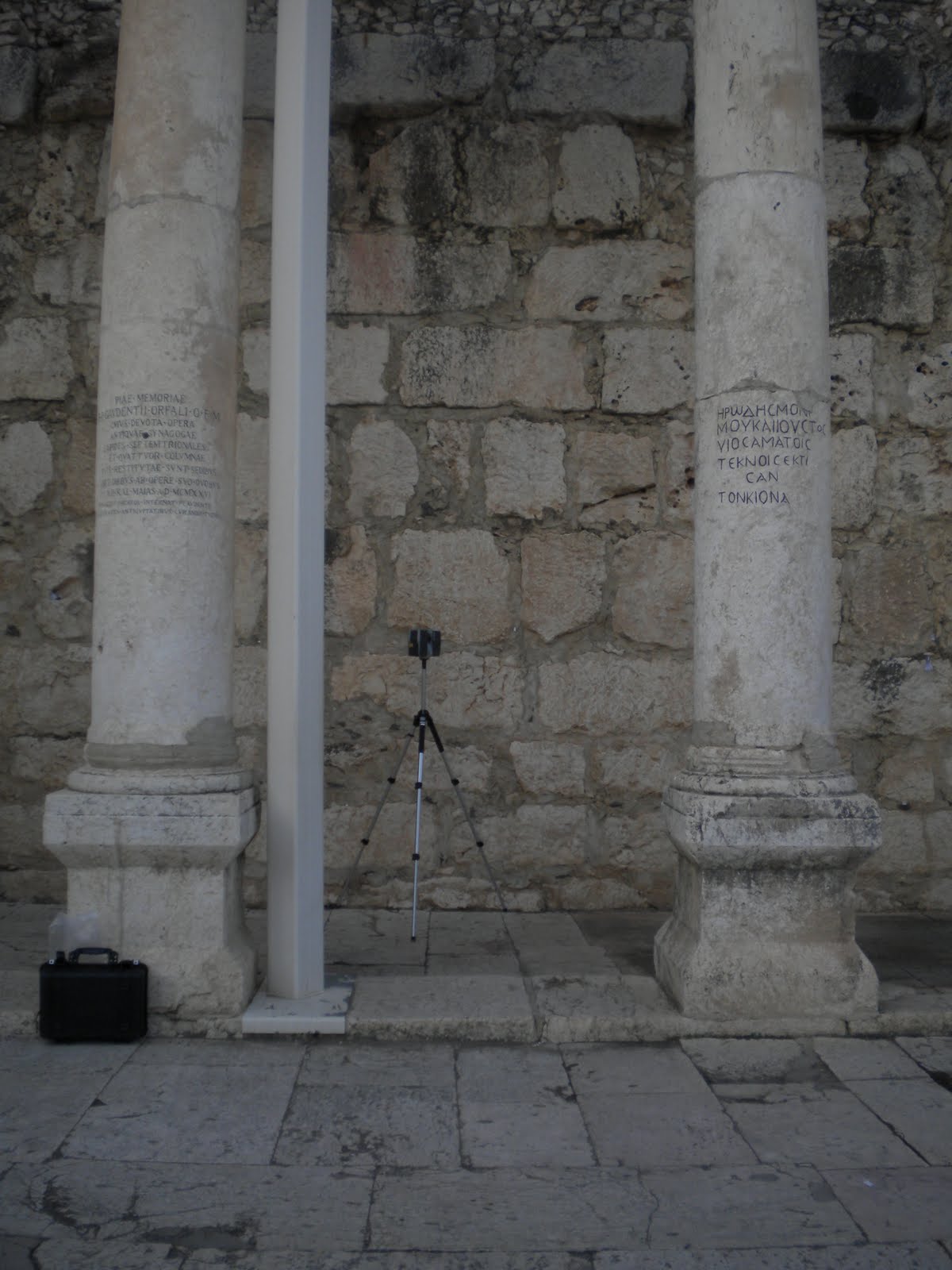

Here we are! We now come to the end of the acquisitions in Cafarnaum, there are still a few days to complete the synagogue.

Here, too, had seen the problems with the color in Sant Peter's house , it was necessary to detect times of day when there wasn't the presence of direct light.

Meanwhile, we have almost completed the alignment of the residential area and continues editing of Sant Peter's house.


Obiettivo: rilievo 3D sito archeologico

Eccoci! Siamo ormai giunti al termine delle acquisizioni a Cafarnao, restano ancora pochi giorni per completare la sinagoga.

Anche qui, visto i problemi avuti con il colore nella casa di Pietro, si è reso necessario rilevare in ore del giorno in cui non ci fosse la presenza di luce diretta.

Nel frattempo abbiamo quasi terminato gli allineamenti del quartiere abitativo e prosegue l'editing della casa di Pietro.



Saturday 3 December 2011

Our typical day

1. At first light we are already awake.... or almost


2. The complete awakening....physical


3. Now it's time to produce



4. The rest of the warrior


see you soon....

Tuesday 29 November 2011


REPORT from HOLY LAND_CAFARNAUM
DAY 6_7_8
DATE: 28_11_2011

Object: survey 3D archeological site
The scans imported have been revised and aligned using Faro Scene, first, and the ICP tools of  JRC 3D Reconstructor, later.  The alignment result showed an average error of 1.2 mm that we consider a very high quality result.
Due to the large amount of points and the inability to manage them simultaneously we decided to organise  the point clouds in smaller groups.
Later we show a first viewof a complete model in which only a few points need to be integrated in order to avoid discontinuity.
This area is very important ! It is possible to see, in 3D the entrance step rock of the House of San Peter. That rock has an important cultural but also religious value, for christians, because that entry rock was surely touched by Jesus Christ in the three years he spent living in Cafarnaum.
Today the surveying activities moved  in the area between San Peter's Home and the Synagogue.
Always paying attention to lighting conditions, we planned the data acquisition deviding the ruins of the old town of Cafarnaum in areas.
At the moment 54 scans were aquired.


Obiettivo: rilievo 3D sito archeologico
Le scansioni importate sono state rielaborate ed allineate ai prestabiliti riferimenti con JRC Reconstructor 3D con un errore medio di 1,2mm, risultato ottimale per il campo di applicazione in questione.
Vista la grande quantità di punti e l'impossibilità di gestirli contemporaneamente abbiamo pensato di eseguire l'edit raggruppando le nuvole in piccoli gruppi.
Le prime visualizzazioni mostrano un modello completo in cui solo pochi punti vanno integrati al fine di evitare discontinuità.
Riprendendo con il lavoro in campagna  si è iniziato il rilievo del quartiere abitativo compreso tra la casa di Pietro e la sinagoga. Sempre prestando attenzione alle condizioni di luminosità abbiamo pianificato l'acquisizione dati, la quale risulterà più dispendiosa in termini di tempo poichè dovrà essere svolta a zone.
Ad ora sono state effettuate 54 scansioni.

A sector of the House of Sant Peter in Cafarnaum

Monday 28 November 2011



REPORT from HOLY LAND_CAPERNAUM
DAY 4_5
DATE: 25_11_2011

Object: survey 3D archeological site
In accordance with our schedule, late yesterday afternoon, we completed the acquisitions of  Sant Peter's house.
The scans are total 117. We have to delete 5 of them for bad quality on the color aquisition.
In the morning we began to import the data using the software FARO SCENE, at which point clouds were stained in a totally automatic.
Later scans were imported into the software JRC 3D Reconstructor.
To manage the large number of file in less time, the work was divided into two projects linked by homologous scans used as fixed points previously aligned.
This phase will require registration at least 2 days to show in its entirety the home of Peter and then evaluate the fullness of data.



Scanning process with Faro Focus 3D, on the ruins of the Sant Peter's Home


Obiettivo: rilievo 3D sito archeologico
Come previsto sulla nostra tabella di marcia, ieri nel tardo pomeriggio abbiamo terminato le acquisizioni della casa di San Pietro.
Le scansioni totali risultano essere 117 a cui ne andranno detratte circa 5 a causa della cattiva presa della camera fotografica dovuta ai problemi di luce.
In mattinata si era iniziata l'importazione dei dati tramite il software SCENE di FARO, con cui le nuvole di punti sono state colorate in modo totalmente automatico.
Successivamente le scansioni sono state importate nel sofware JRC Reconstructor2.
Per poter gestire la notevole mole di dati in minor tempo, il lavoro è stato suddiviso in due progetti legati tra loro da scansioni omologhe utilizzate come punti fissi precedentemente allineati.
Questa fase di registrazione richiederà almeno 2 giorni al fine di visualizzare nella sua totalità la casa di Pietro e valutare successivamente la completezza dei dati.


Saturday 26 November 2011

What is this? Dining room or an office??



The working day starts early, ends late and no time is lost in the middle...always at work!!!

Friday 25 November 2011

View of Tiberias from the shore of Capernaum


After a hard day of acquisition began at sunrise, late finish may be pleasantly emotions.

Thursday 24 November 2011

The Entrance of the Cafarnaum Archeological site



Cafarnaum archeo site !

3D BYZANTINE MOSAIC IN CAFARNAUM

Look at the 3D Byzantyne mosaic in Cafarnaum. It was the pavement of the ancient Byzantine church.  Image from Zennario (ZegioGroup), laser scanner from University of Brescia - Faro Focus 3D and Gexcel JRC 3D Reconstructor....

3D Byzantine mosaic in Cafarnaum


ON THE FIELD REPORT from HOLY LAND_CAFARNAUM
DAY 2_3
DATE: 23_11_2011

Object: survey 3D of the archeological site
After the reference scans, acquired with resolution to 1/4 with the FARO FOCUS 3D and the firstalignment tests, today we started scanning the Sant Peter's home.
As planned during the inspection with pur professor and the team of Gexcel and of the Custody of Holy Land, we started measuring at the sunrise (7 am), so that the pictures taken by the FOCUS 3D have the colours as homogeneous as possible.
To minimize the hidden parts and follow the best use of discontinuities of materials and the stratifications, in this context we  have been chosen to scan the objects athe the distance of  2 - 3 m meters, placing the instruments  and a different levels, trying to thus obtain a complete model.
At the moment, the scans are 92 and we are starting with the elaboration process with Faro Scene and  JRC 3D Reconstuctor



The Survey of the Sant Peter Home

Obiettivo: rilievo 3D del sito archeologico
Dopo le scansioni di riferimento, acquisite con risoluzione ad 1/4 with the FARO FOCUS 3D ed i primi passi in fase di allineamento si è passati al rilievo della casa di San Pietro.
Come deciso durante il sopralluogo, per ottenere un dato del colore il più possibile omogeneo sulle superfici si è fissata l'ora di inizio delle prese all'alba, in quanto solo in quel momento alcune parti risultano con luce diffusa.
Per ridurre al minimo le parti nascoste e seguire al meglio le discontinuità dei materiali e le stratificazioni, in questo contesto si è optato per l'individuazione di punti di scansione vicini  (max 2-3m) ed a quote differenti, cercando di ottenere così un modello completo.






Ad oggi le scansioni effettuate sono state 92 ed ora ci accingiamo alla loro rielaborazione con  Faro Scene eJRC 3D Reconstuctor

Thursday 17 November 2011


ARRIVED IN JERUSALEM

On the 16th a team composed by Roberto Paderni and Cristian Mantelli (students of the University of Brescia),  by their professor,  Giorgio Vassena (also CEO at Gexcel srl), by the architect Antonella Palmieri and  Lorenzo Cavallari (from gexcel), with the FARO Focus3D laser scanner move to Israel.
In Jerusalem the team is hosted by the Custody of Holy Land at the Hein Karem Sant John Lodge.

Arrived in Hein Karem Lodge ! Hosted here for one night.

The first day we have time form some tests of the FARO FOCUS 3D inside the Hein Karem Church

An outside view of the Hein Karem church


Saturday 12 November 2011

Training on JRC 3D Reconstructor at University of Brescia

The project starts. The students of the University of Brescia trained to use JRC 3D Reconstructor


Roberto with Massimo of Gexcel's team during training on JRC 3D Reconstuctor




Training !!
